GetCustomers

Description

The GetCustomers scenario retrieves the customer information (name, id, addresses, tax information, etc) from SAP Business One and through the LS One Integration Framework saves it into the current LS One company.

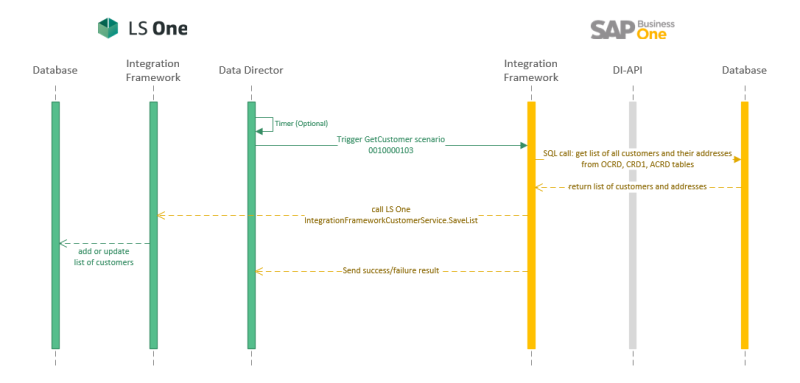

Data Flow Diagram



Processing atoms

Atom Identifier	Title	Description
atom1	xform: Prepare sql	Prepare customers and customers addresses sql queries for sync
atom2	sql: Get customers	Retrieve customers and customers addresses from DB
atom3	xform: Customers	Prepare Soap message containing customers and their addresses
atom4	http: LSOne IF	Send customers and customers addresses to LSOne
atom0	final	Invoke XSLT file to convert import object to result object



Inserted:	June 2018
Version:	LS One 2018
