TaxSync
Description
The TaxSync scenario tetrieves all tax groups and tax rates and saves them into LS One.

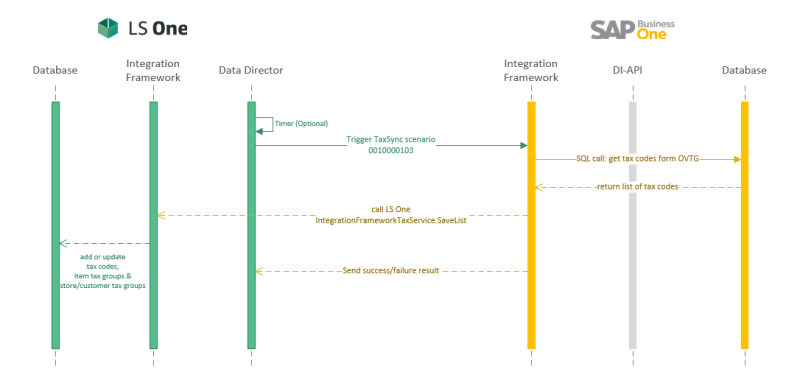

Data Flow Diagram
Processing atoms
| Atom Identifier | Title | Description |
|---|---|---|
|
atom1 |
sql: Get tax groups | Get tax groups from SQL |
| atom3 | xform: Item Tax Groups | Prepares SOAP for SaveItemSalesTaxGroupList |
| atom2 | http: LSOne IF | Call SaveItemSalesTaxGroupList |
| atom12 | xform: Tax Groups | Prepares SOAP for SaveSalesTaxGroupList |
| atom11 | http: LSOne IF | Call SaveSalesTaxGroupList |
| atom5 | xform: Tax Codes | Prepares SOAP for SaveTaxCodeList |
| atom4 | http: LSOne IF | Call SaveTaxCodeList |
| atom7 | xform: Codes | Prepare SOAP for AddTaxCodeToItemSalesTaxGroupList |
| atom6 | http: LSOne IF | Call AddTaxCodeToItemSalesTaxGroupList |
| atom14 | xform: Codes to customer group | Prepare SOAP for AddTaxCodeToSalesTaxGroupList |
| atom13 | http: LSOne IF | Call AddTaxCodeToSalesTaxGroupList |
| atom8 | sql: Tax Code Values | Get tax code values |
| atom10 | xform: Tax Code Values | Prepare SOAP for SaveTaxCodeValueList |
| atom9 | http: LS One IF | Call SaveTaxCodeValueList |
| atom0 | final | Invoke XSLT file to convert import object to result object |
| Inserted: | June 2018 |
| Version: | LS One 2018 |
